Black, white & gray, Matches with streamlined design

Full of Sense of Science & Technology

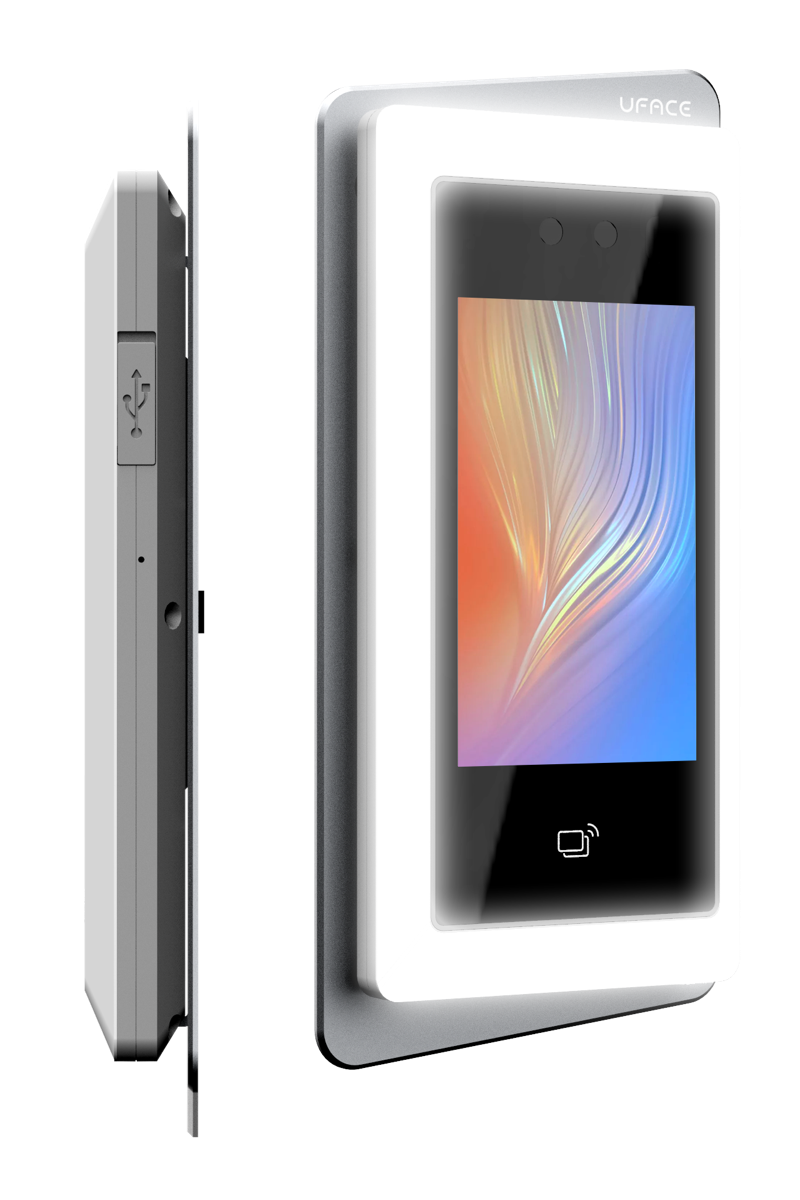

Brand-new wall-mounting & industrial design, with compact streamlined design


Begin with Appearance, Devoted to Inner Strength


  • Recognition accuracy up to 99.99%
  • Recognition speed less than 1s
  • Supports various verification methods
  • Binocular detection, verify within 1s

Product Parameters


General Parameters

  • Working temperature： -10 ℃～50 ℃
  • Power：DC 12V/2A
  • Working humidity：10%～90%
  • Power consumption： Max. 15W

Display

  • Display screen： 3.97-inch IPS all-sight LCD screen
  • Resolution： 800 * 480

RGB Camera

  • Image sensor： Progressive scan CMOS
  • FOV：55.2°
  • Shutter type：Electronic rolling shutter
  • AGC balance：Auto
  • Resolution：1280 * 720
  • Lens：f=4.1mm, Aperture F2.4
  • AEC balance：Auto
  • AWB balance：Auto

Infrared Camera

  • Image sensor : Progressive scan CMOS
  • FOV：55.2°
  • Shutter type：Electronic rolling shutter
  • AGC balance：Auto
  • Resolution：1280 * 720
  • Lens：f=4.1mm, Aperture F2.4
  • AEC balance：Auto
  • AWB balance：Auto

System Parameters

  • Operating system： Linux
  • Storage： 512MB, 4GB ROM
  • CPU： Dual-core ARM Cortex-A7@ 900MHz

Interfaces

  • RS-232, Relay output, Wiegand output, Signal input, Type-A USB, Tamper switch, External QR code access

Communication Mode

  • RJ 45, 2.4GHz Wi-Fi

Functions

  • Accuracy： Up to 99.99%
  • Type of card reader : Standard EM&MIFARE card
  • Recognition distance configuration: Live detection: 0.3-1.5m; Non-live: 0.3-3m
  • Remote upgrade： Supports
  • Capacity : 10-thousand face database
  • Records: 150-thousand pieces of recognition records (30-thousand records with on-site photos)
  • Custom UI： Supports
  • Software：Cloud, LAN
